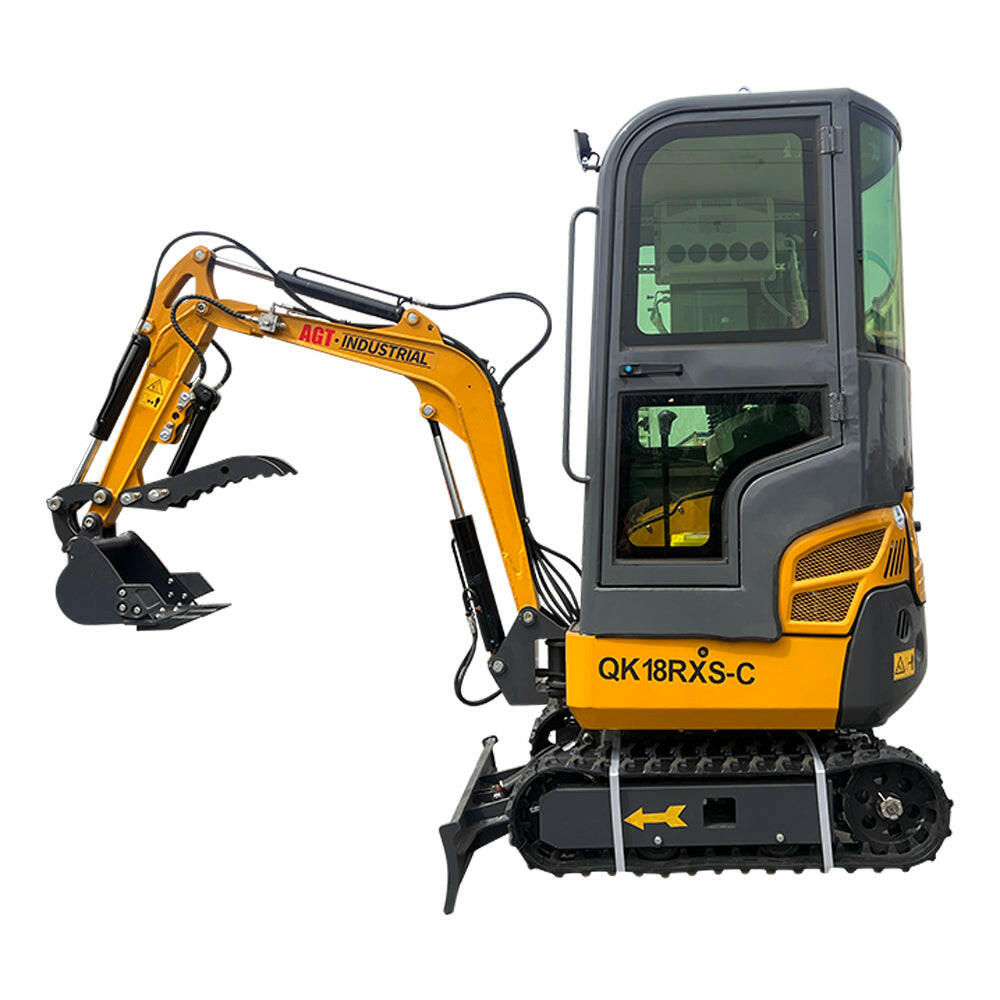

1-ton, Rato Engine Mini Excavator w/Air Conditioning & Enclosed Cab & Side Swing

1-ton, Rato Engine Mini Excavator w/ A/C & Enclosed Cab | QK18RXS-C

$13,198.90 Regular Price
$12,358.97Sale Price
Quantity

Description

QK18RXS-C is a 1-tonne mini excavator running a RATO engine, built for groundwork on sites where access is the limiting factor.

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, 's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. With air conditioning, side swing and enclosed cab: Give you a comfortable work experience while you work.

A side-swing boom means trenches can be cut tight to boundaries and buildings — the difference between digging a footing and hand-digging it. A full cab makes all-weather working practical rather than merely possible. Air conditioning makes the cab workable through summer heat.

Typical work: service trenches, strip footings, drainage and soakaways, pond and bank shaping, stump removal and general muck-shifting.

This size is the usual answer when getting the machine to the dig is harder than the dig itself: gate access, easy transport, low ground pressure.

Features

  • Side-swing boom

  • Enclosed operator cab

  • Air conditioning

  • Operation Weight: 980kg

  • Travel speed low/high (km/h): 0-1.8

  • Capacity of bucket: 0.03 m³

  • Max Digging Depth: 1693mm

  • Overall width: 958mm

Specifications

  • Operation Weight: 980kg

  • Travel speed low/high (km/h): 0-1.8

  • Capacity of bucket: 0.03 m³

  • Max Digging Depth: 1693mm

  • Max Digging Height: 2560mm

  • Max Load Height: 1800mm

  • Min Rotation Radius: 3060mm

  • Max Angle of Climb: 15°

  • Side Swing Angle: 30°

  • Total length: 2925mm

  • Overall width: 958mm

  • Total Height: 2422mm

  • Maximum speed (rpm): 3600

  • Rated set pressure (Mpa): 25

  • Maximum power: 8.5

  • Main pump type: GP510803

  • Maximum flow rate of main pump(L/min): 21.6

  • Multi circuit valve: 4 mechanical + 4 hydraulic

  • Rotary hydraulic motor type: BM2-315

  • Traveling hydraulic motor: BM6-315

  • Max Angle: 30 Degree

  • Model: R420

  • Power Output: 8.5 kW (approximately 11.4 HP)

  • Maximum Speed: 3,600 RPM

Figures as published for this model; confirm critical dimensions before ordering.
