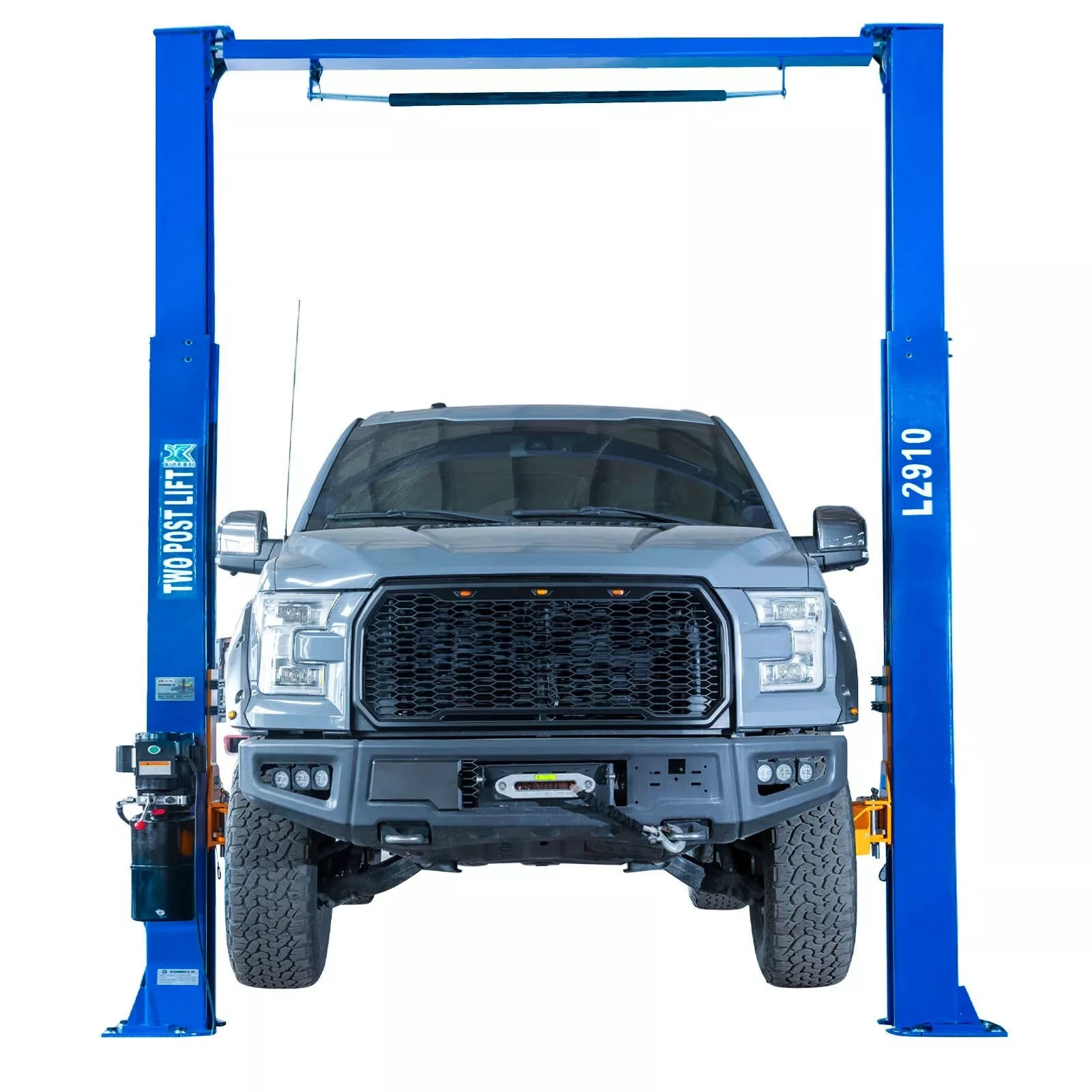

XK L2910 2 Post Clear Floor Car Lift 9,000 LB Auto

XK L2910 2 Post Clear Floor Car Lift 9,000 lb Auto Truck Hoist Over Head 220V

$2,199.00 Regular Price
$1,199.00Sale Price
Quantity

Description

Meet the XK L2910 2 Post Clear Floor Car Lift 9,000 lb Auto Truck Hoist Over Head 220V — a two-post lift designed for dependable, everyday performance. With a 9,000 lb rated capacity, it is made for general service work — brakes, suspension, steering, exhaust, and drivetrain jobs where full undercar access matters. It carries XK's focus on durable materials and practical, shop-proven engineering.

Powered by a 3 HP motor and 220V operation, it delivers consistent performance through long workdays. It hits the sweet spot between heavy-duty capability and everyday usability, which is exactly what most garages actually need.

Structurally, a two-post lift lives or dies by its columns, carriages, and arm restraints — and that's where the engineering attention has gone here. The columns are formed from heavy-gauge steel, the carriages ride the full working height, and the arms lock automatically the moment the vehicle leaves the ground. Lifting force is delivered hydraulically with mechanical safety locks engaging along the travel, so the vehicle rests on steel — not hydraulic pressure — while you work beneath it.

In practice, that means a technician can pull a wheel, drop an exhaust, or swap a transmission with the vehicle at a comfortable working height and nothing in the way underneath. Home users appreciate the same access on project cars and daily drivers; commercial shops appreciate what it does to job times. Either way, the lift quickly becomes the tool everything else in the garage is organized around.

Long-term, this is equipment designed to be owned — durable finishes, accessible service points, and replacement parts that don't require a scavenger hunt.

Key figures include motor: 3HP, 220V, 60HZ, 1PH; lifting capacity: 9,000 lbs; overall height: 141.73"; overall width: 130.31"; see the specifications section for the complete details.

Features

  • Adjustable pads and free truck adapters

  • Double Point Safety Lock Release

  • Automatic arm lock restraints

  • Relief valve built-in to prevent overloading

  • Door guards protection rubber

  • Up-limit switch for safe working stroke

  • Heavy-duty 5/16" diameter cable for better synchronization

  • Ultra-high molecular self-lubricating nylon slider for smooth operation

  • Anchor bolts/mounting hardware included

  • Must be level and made of 3

  • New concrete must cure for at least 30 days

Specifications

  • Motor: 3HP, 220V, 60HZ, 1PH

  • Lifting Capacity: 9,000 lbs

  • Overall Height: 141.73"

  • Overall Width: 130.31"

  • Column Width: 10.59"

  • Distance Between Posts: 108.26"

  • Base Width: 14-9/16"

  • Column Thickness: 11/64"

  • Carriage Thickness: 3/16"

  • Arms Thickness: 15/64"

  • Front Arm: 29.9"-47.2"

  • Rear Arm: 29.9"-47.2"

  • Min Pad Height: 3-7/8"

  • Max Lift Height (without truck adapters): 70"

  • Drive-Thru Width: 99-7/32"

  • Time to Full Rise: 55 seconds

  • Shipping Weight: 1250 lbs

  • Overhead Area: Clear of obstructions like heaters, doors, and electrical lines.

  • Floor Area: Inspect for cracks or defects.

  • Forklift Required: A forklift or tractor is needed for unloading the product.

  • Terminal Pickup: Can be requested if you don't have the ability to unload.

  • Lift Gate Service: Available upon request.
